Design and mode of operation
- The hoist is designed as a double vertical ship hoist: Two troughs can be operated independently of each other.
- The troughs have a usable length of 100 meters, a width of around 12 meters and a water depth of around 3.40 meters. The ships are moved up or down in the water-filled troughs like in giant elevators.
- The weight of a trough filled with water is around 6,000 tons, regardless of whether a ship is floating in it or not. This is because, according to Archimedes' principle, a ship displaces exactly as much water as it weighs.
- Each trough is suspended from 240 steel cables with a diameter of 54 mm, which are guided over large pulleys in the four towers.
- On the opposite side are 224 counterweights made of heavy concrete, each weighing around 27.2 tons.
- Each trough is driven by four electric motors, each with an output of 160 kilowatts. The lifting height of 38 meters is overcome in about three minutes.
The history
- Construction work began in 1968 as part of the new construction of the Elbe Lateral Canal.
- The first ship passed the hoist on December 5, 1975. At the time of its commissioning, it was the largest double vertical ship lift in the world.
- On July 18, 1976, just a few weeks (33 days) after the opening, a dam burst near Erbstorf due to construction defects. Around 4.5 million m³ of water escaped and flooded around 15 square kilometers of land.
- No one was injured, but the material damage amounted to around DM 20 million. After the renovation in 1977, the canal was put back into full operation.
Significance and current developments

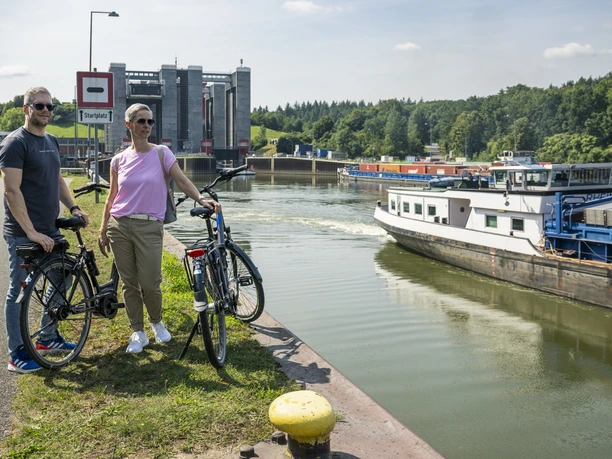

- Today, the ship lift is a central component of the Elbe Lateral Canal, which connects the Mittelland Canal near Wolfsburg with the Elbe near Artlenburg.
- It enables goods to be transported between southern, central and northern Germany and Berlin to the port of Hamburg.
- The usable length of 100 meters is now considered a technical bottleneck, as modern large motor cargo ships and pushed convoys are up to 185 meters long.
- For this reason, the construction of a new modern lock with a usable length of around 225 meters and a width of 12.5 meters is planned. It is intended to supplement or replace the existing lift in the long term.
- The project is being supervised by the Mittelland Canal / Elbe Lateral Canal Waterways and Shipping Office and is classified as an urgent requirement in the Federal Transport Infrastructure Plan.
Visitor information
- The boat lift is accessible all year round and attracts tens of thousands of visitors every year.
- The on-site information center explains how the boat lift works, the construction of the Elbe Lateral Canal and the history of the region - with models and display boards.

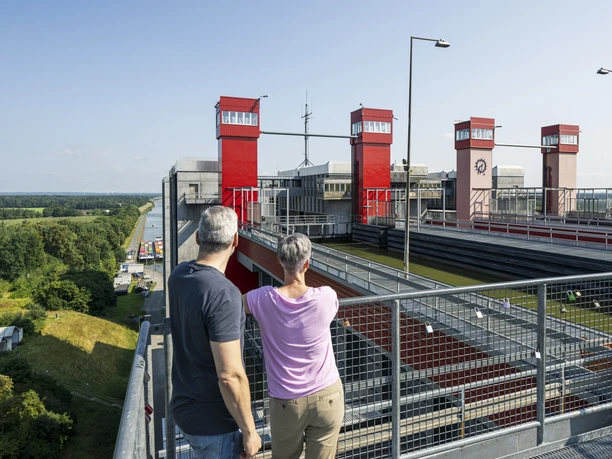

- A circular route with several viewing points, including at the forebays, the visitor platforms and the park-like grounds, offers impressive insights into the operation.

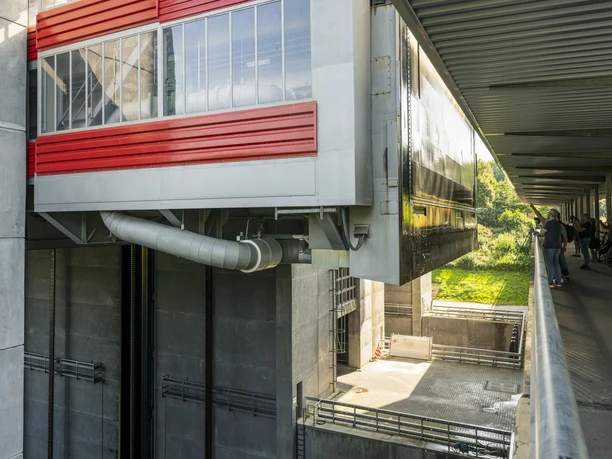

Guided tours
- Guided tours for groups and school classes are offered regularly and can be booked via Jörg Ahlfeld at: www.schiffshebewerk-scharnebeck.de
- Dates for open guided tours can be found ▶here.
